| Brand Name : | XGMA |
| Model Number : | XGMA-CPC530DT5 |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100 per month |
| Delivery Time : | 5~8 work days |

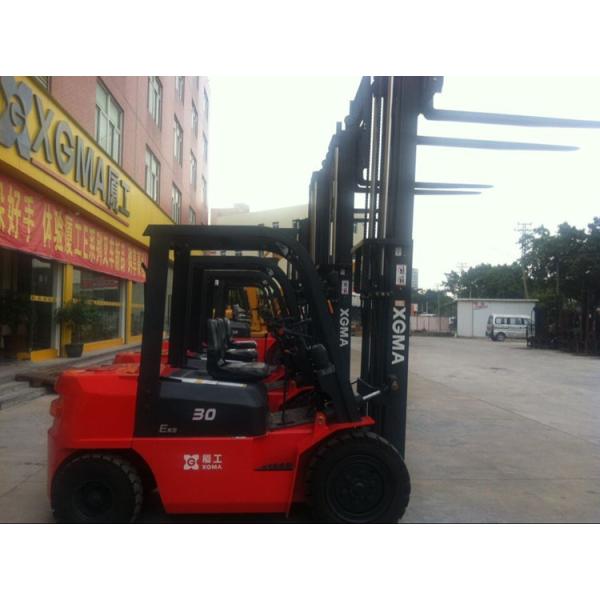

Diesel Mitsubishi Hydraulic Pump 3 Ton forklift
We use C490BPG Euro III emission standard,Have CE certificate,it have export to Europe.
Japanese engine:Mitsubishi, Nissan K25, etc, options.
| Character | 1.1 | Manufacturer | XGMA | |
| 1.2 | model | CPC30 | ||
| 1.3 | Product name | XG530-D5 | ||
| 1.4 | Power size | Diesel | ||
| 1.5 | Rated Capacity | kg | 3000 | |
| Dimension | 2.1 | load center distance | mm | 500 |
| 2.2 | Lifting height | mm | 3000 | |
| 2.3 | Free lifting height | mm | 145 | |
| 2.4 | Mast tilt | α/β | 612 | |
| 2.5 | Overall Length | mm | 3820 | |
| 2.6 | Overall Width | mm | 1220 | |
| 2.7 | Mast without lifting height | mm | 2100 | |
| 2.8 | Right Angle stacking min. channel width | mm | 4075 | |
| 2.9 | Overhead height | mm | 2150 | |
| 2.11 | Fork(L*W*H) | mm | 1070*125*45 | |
| 2.12 | Front overhang/Rear overhang | mm | 475/515 | |
| 2.13 | Wheel distance | mm | 1760 | |
| 2.14 | Min. Turning radium | mm | 2400 | |
| Specification | 3.1 | Min.ground clearance | mm | 140 |
| 3.2 | Max.driving speed(Empty load) | km/h | 20 | |
| 3.3 | Lifting speed(Full load) | mm/s | 450 | |
| 3.4 | Max.traction | KN | 15 | |
| 3.5 | Gradeability | ° | 20 | |
| Tires | 4.1 | Overall Weight | kg | 4270 |
| 4.2 | Front tire size | 28*9-15-14PR | ||
| 4.3 | Rear tire size | 6.50-10-10PR | ||
| 4.4 | wheel distance(Front/Rear) | mm | 1000/980 | |
| Driving,transmission gear device | 5.1 | Engine Model | C490BPG | |
| 5.2 | Eninge rated power/rotate speed | kw/r.p.m | 40/2650 | |
| 5.3 | Max.torque/rotate speed | N.w/r.p.m | 160/1800-2000 | |
| 5.4 | Gears (Front/Rear) | 22 | ||
| 5.5 | Battery(Valtage/capacity) | V/Ah | 12/80 | |
| 5.6 | Fuel box capacity | L | 70 | |
| 5.7 | Hydraulic oil box capacity | L | 70 |
Enhanced&Reliable
1.The enhanced driving axle and steering axle have better performance of shock and bumpiness resistance.The new multi-sealing system is more suitable for severe working environment.
2.The enhanced and broad-view mast. and split type slide carriage "6 main rollers +4 side rollers" increases the reliability and stability of the mast.
3.The bent- resistance ability of the enhanced tilt cylinder is 14% higher!
4.The Germany brand (MANN+HUMMEL) dual-element air filter has filtering efficiency and dust holding ability 5 times and 3 times better than traditional air filter. The extra safety filter element can better protect the engine.
5.The Germany brand (MANN+HUMMEL) oil-water separator has the oil-water separation efficiency as high as 98% under the rated flow. It reaches the advanced level in the forklift truck industry that can better protect the engine.
FAQ
1.What's the Certificate do you have?
XGMA workshop meet with the ISO9001 Quality System. And all of our
products are with CE certificate.
2. Can you customize and design as the clients' requirement?
XGMA will try its best to meet all kinds of clients' special
requirements. And for new products that have not been into the
market yet, we have our technical team to help the clients. All
kinds of attachments such as roll paper clamp, side shifter and so
on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the
first.
4.What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.
5.Delivery date:
If clients need normal products, we will deliver the products
within 15days. If clients need customerized products, the delivery
date depend on the requirements.
|
|
